Basic Specifications
Machine Type
Fertilizer Spreader
Power Source
Hydraulic Turbine
Certification
CE, ISO9001:2008, QS
Product Overview

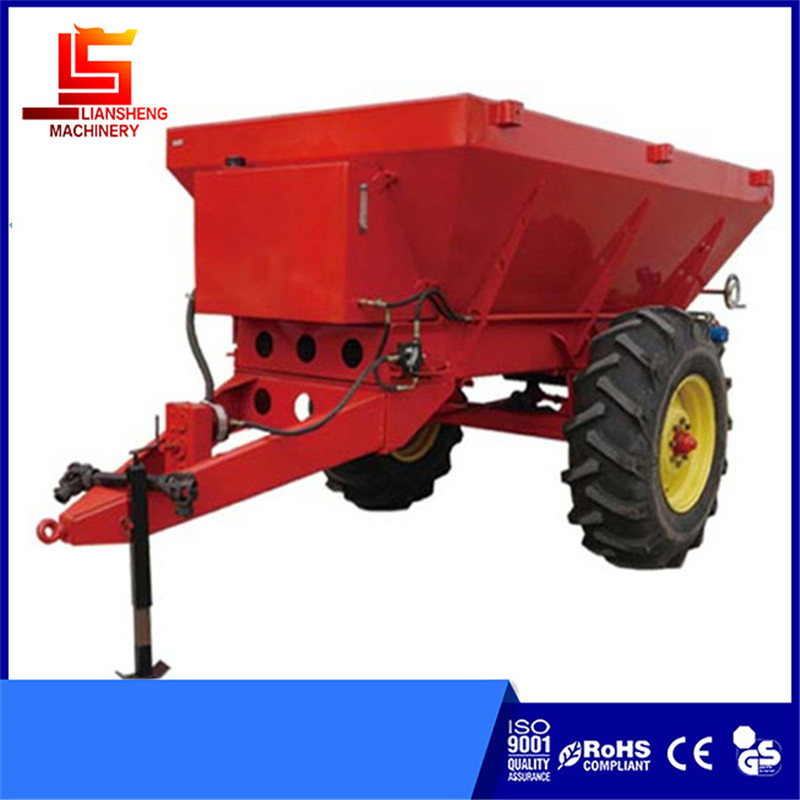

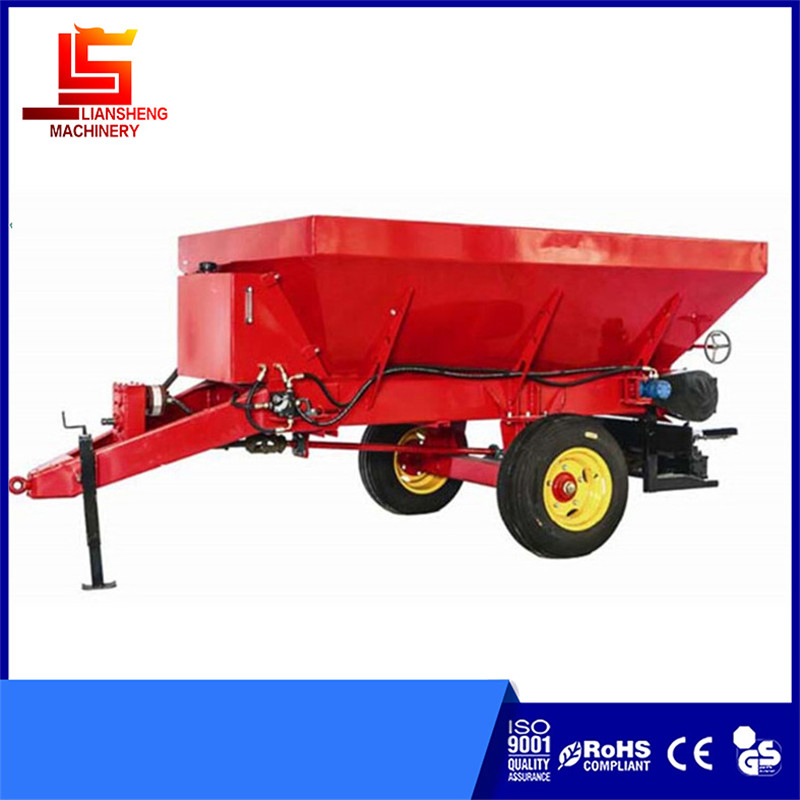

🚀 Tractor Trailed Manure Spreader Specially for Spreading Farmyard Manures
The traditional DFC series of manure spreader is mainly used for spreading base fertilizers before tillage, and spreading manures after tillage before planting on meadows and pastures. The machine has the features of wide range of applications, high working efficiency, even spreading effect etc. It is ideal for use on large farms, grasslands and pastures.
It can spread organic fertilizers of animal wastes like chicken and duck feces, cow and goat dung and so on. It can also spread limes, salt (for snow removal) etc. for the applications in construction industry and road administration.
Technical Features

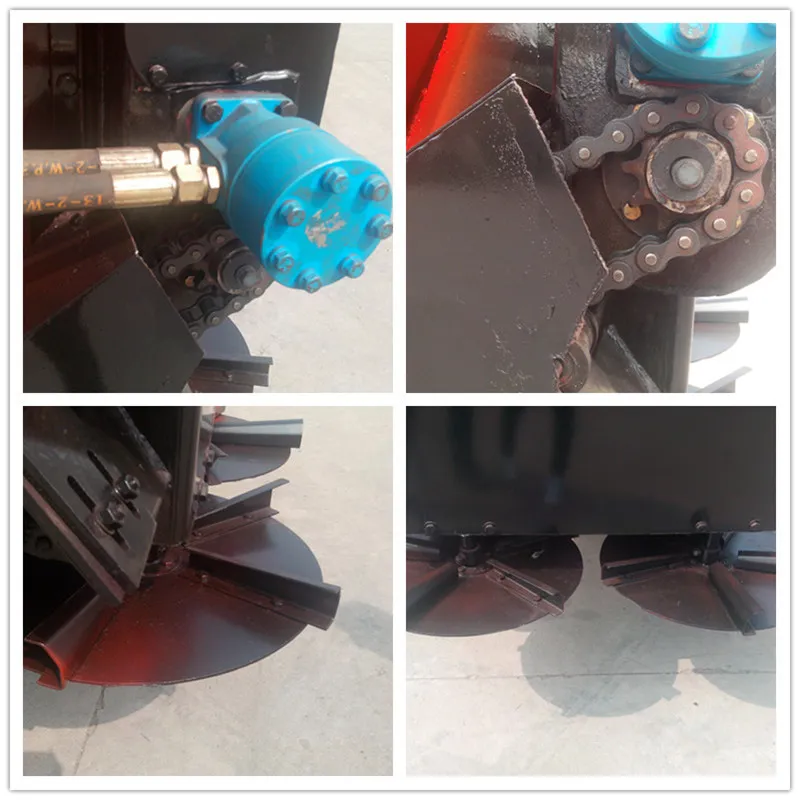

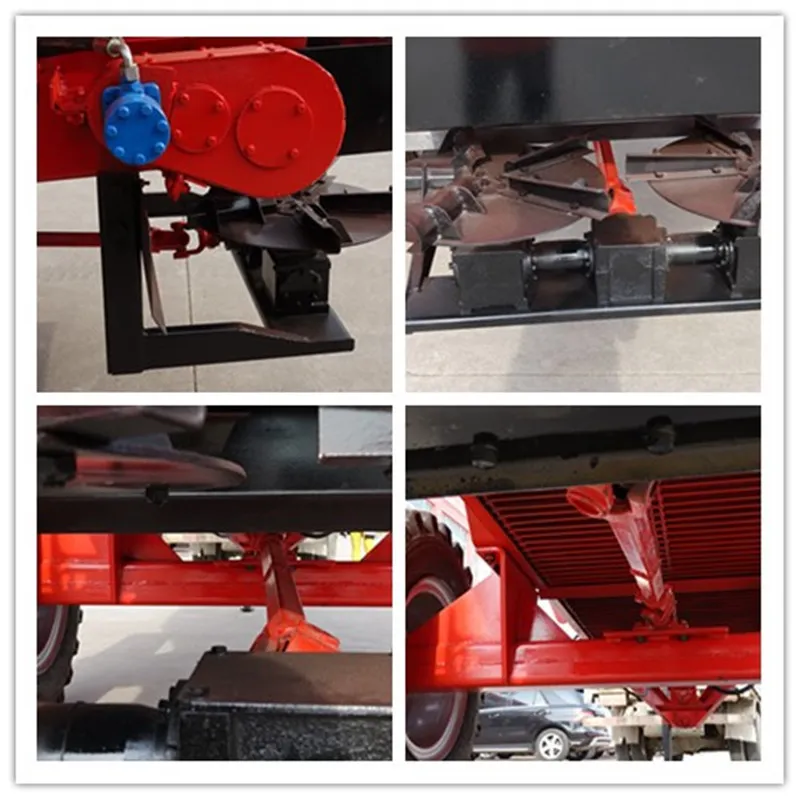

• Double Spreading Discs: High-efficiency device for even spreading and large loading capacity.
• Customizable Volume: Specially designed heightening holes allow users to add loading volume conveniently.
• Adjustable Discharge: Humanized design allows the opening size to be adjusted based on spreading requirements.
• Hydraulic Control: Adjusting valve controls the transmission chain speed, precisely managing the manure flow.
| Model |
Capacity |
Weight |
Matched Power |
Width |
Dimensions |
| DFC-2500 |
2m³ |
960kg |
25-50hp |
6-15m |
3700×1600×1700mm |
| DFC-5500 |
2.5m³ |
1350kg |
30-60hp |
6-15m |
4200×1800×1750mm |
| DFC-7500-2 |
4m³ |
1610kg |
50-80hp |
6-15m |
4800×2200×2050mm |
| DFC-12000B |
8m³ |
1880kg |
70-120hp |
6-15m |
5500×2200×2250mm |
Product Gallery
Frequently Asked Questions
What materials can this spreader handle?
It is designed for organic fertilizers such as chicken, duck, cow, and goat manure, as well as lime and salt for snow removal.
How is the spreading width adjusted?
The DFC series offers a spreading width of 6 to 15 meters, depending on the model and the speed of the double spreading discs.
Can I increase the loading capacity of the machine?
Yes, the machine features built-in heightening holes allowing users to add extensions to increase the overall loading volume.
What power source is required for operation?
The machine utilizes a hydraulic turbine system and is designed to be trailed by tractors ranging from 25hp up to 120hp.
Is the manure discharge flow controllable?
Yes, the hydraulic adjusting valve controls the chain transmission speed, allowing you to increase or decrease the manure flow rate.
What certifications does the DFC series have?
The equipment is fully certified with CE, ISO9001:2008, and QS quality standards.
